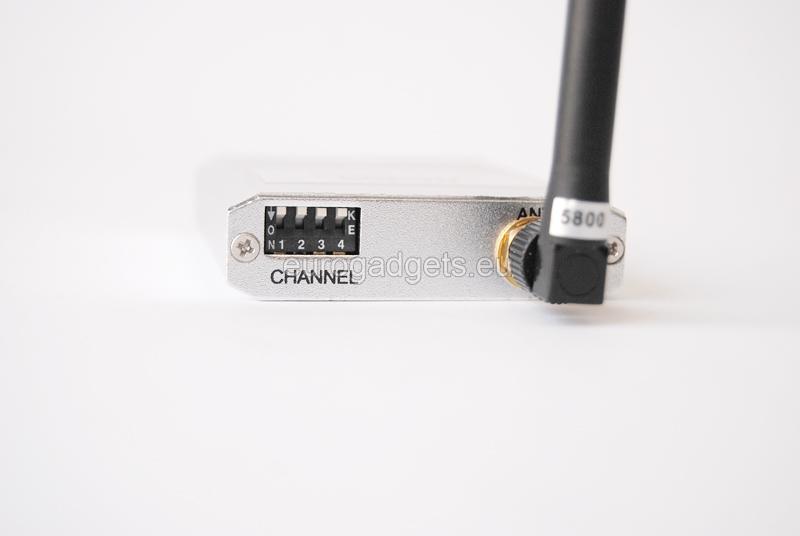

5.8 GHz transmitter and receiver kit (BC37)

Product description

This wireless 5.8 GHz transmitter can transmit AV signal from CCTV cameras. You can mount the camera and transmitter in different places and at a distance from one another and thus maximize good disguise. There are 8 channels of broadcast and using less congested frequency band of 5.8 GHz you can get very good picture quality and sound.
Wireless receiver kit also has a small footprint, easy installation. With the included cable, you can watch live TV signal or combine with one of our DVR to record it.

Features:


5.8GHz Transmitter AV-in FM transmitter
Size - 55 × 26 × 17 mm
Power - 12V 150mA
PLL stabilization
Weight - 30 g with antenna


Receiver Frequency Range - 5725-5865MHz; 8 channels
susceptibility-90dBm
Antenna SMA (pin)
Power - 12V, 150mA
Size 61 * 52 * 13mm

Channels:

CH1: 5705 MHz
CH2: 5685 MHz
CH3: 5665 MHz
CH4 : 5645 MHz
CH5: 5885 MHz
CH6: 5905 MHz
CH7: 5925 MHz
CH8: 5945 MHz

Contact:
< br /> Cable 5PIN:

Red - power +12 V

Black - GND

Yellow - Video

White - Audio 6.0MHZ

Green - Audio 6.5MHZ

Cable 2PIN:

Red - Power Supply +12 V

Black - GND
